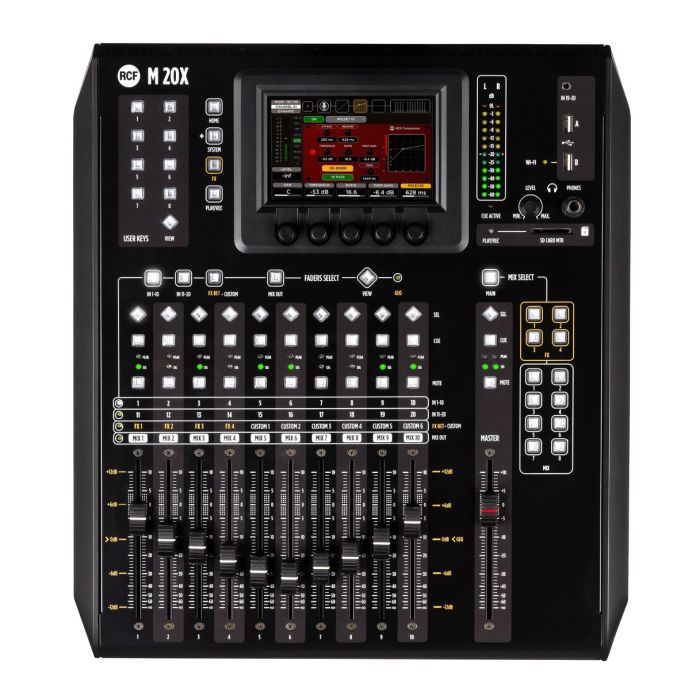

M 20X
• 20 de intrări analogice
• 4 compresoare Single-control
• Rec și Play de pe USB şi Card SD
• 20 Multi-track Record
• Fadere motorizate
• Touch Screen
• EQ pe 3 benzi pt. canale Mono
• EQ pe 2 benzi pt. canale Stereo
• PRO DSP FX efecte cu 16 preseturi
Cere informații:
| Internal FX: | 4 |
| FX1: | Reverb (Hall, Room, Plate, Ambience) |
| FX2: | Reverb (Hall, Room, Plate, Ambience) |
| FX3: | Delay (Stereo, Modern, Vintage, Dual, ER) |
| FX4: | Modulation (Chorus, Flanger, Tremolo) |
| Mic (Balanced XLR): | 8 |
| Remote Controlled Storable Gain: | Yes |
| Gain Range: | 0 dB ÷ 60 dB |
| Mic Input Impedance: | 3.3 kohm |
| Maximum Input Level: | 18 dBu |
| Phantom Power +48V: | Yes |
| Mic/Line (XLR/TRS combo): | 8 |
| Remote Controlled Storable Gain: | Yes |
| Gain Range: | 0 dB ÷ 60 dB |
| Mic Inputs Impedance (XLR): | 3.3 kohm |
| Line Inputs Impedance (TRS): | 12.8 kohm |
| Maximum Input Level (XLR): | 18 dBu |
| Maximum Input Level (TRS): | 29 dBu |
| Phantom Power +48V: | Yes |
| Balanced Line (1/4" TRS): | 2 |
| Gain Range: | 0 dB ÷ 60 dB |
| Line Inputs Impedance (TRS): | 18 kohm |
| Maximum Input Level (TRS): | 18 dBu |
| Stereo Line (3,5mm jack): | 1 |
| Gain Range: | 0 dB ÷ 60 dB |
| Line Inputs Impedance (TRS): | 15 kohm |
| Maximum Input Level (TRS): | 18 dBu |
| MAIN OUT (Balanced XLR): | 2 |
| Output Impedance: | 50 ohm |
| Maximum Output Level: | 24 dBu |
| MIX OUT (Balanced XLR): | 8 |
| MIX OUT (1/4" TRS): | 2 |
| Output Impedance: | 150 ohm |
| Maximum Output Level: | 24 dBu |
| PHONES (6,8mm jack Stereo Line): | 1 |
| Output Impedance: | 50 ohm |
| Maximum Output Level: | 18 dBu |
| AES3 (XLR): | 1 |
| Processing | |
| Signal Processing: | 32 Bit Floating Point |
| A/D-D/A conversion: | 24 Bit @ 48.0 kHz |
| Headroom: | 20 dB |
| Bus: | 16 |
| Input processing | |
| Source Selector: | Yes |
| Polarity: | Yes |
| High Pass Filter: | Yes |
| Delay: | 100 ms |
| Gate: | with Gain Reduction meter |
| PEQ: | 4 Band |
| Compressor / De-Esser on Inputs: | 1 ÷ 16 (with Gain Reduction meter) |
| Output processing | |
| Delay: | 250 ms |
| GEQ: | 30 Band |
| PEQ: | 8 Band |
| Compressor / Limiter: | with Gain Reduction meter |
| MIX OUT: | [1 ÷ 8] |
| Delay: | 250 ms |
| PEQ: | 8 Band |
| Compressor / Limiter: | with Gain Reduction meter |
| Real Time Analyzer: | Yes |
| Delay: | 250 ms |
| Frequency Response: | 20 Hz ÷ 20 kHz |
| THD+N, 0dB gain, 0dBu out: | < 0.02% A-Weighted |
| Dynamc Range, Analog to Analog: | 109 dB A-Weighted |
| Residual Noise Level, Main Out, Muted: | -85 dBu A-Weighted |
| Multitrack | |
| Number of Tracks: | 20 |
| A/D-D/A conversion: | 24 Bit @ 48.0 kHz |
| SD Multitrack Format: | WAV, 24Bit, 48.0kHz |
| Recording: | 20 Channels |
| Playback: | 20 Channels |
| A/D-D/A conversion: | 24 Bit @ 48.0 kHz |
| USB Audio Interface Format: | WAV, 24Bit, 48.0kHz |
| Upstream: | 24 Channels |
| Downstream: | 24 Channels |
| USB drive play/rec | |
| A/D-D/A conversion: | 24 Bit @ 48.0 kHz |
| USB Drive Recording: | 2 Channels @ WAV, 24Bit, 48.0kHz |
| A/D-D/A conversion: | 16 Bit @ 44.1, 48.0, 88.2, 96.0 kHz |
| USB Drive Playback: | 2 Channels @ WAV/MP3/AIFF, 16Bit, 44.1, 48.0, 88.2, 96.0kHz |
| Control interfaces | |
| LAN Port: | 1000-BaseTX for remote control |
| USB Ports: | 2 Type A |
| Description: | MIDI interface, WiFi dongle (must be enabled) |
| Height: | 131 mm |
| Width: | 388 mm |
| Depth: | 428 mm |
| Weight: | 7.9 kg |
| Power supply: | Internal |
| Voltage requirements: | 100 V - 240 V |
| Power consumption (MAX): | 70 W |
